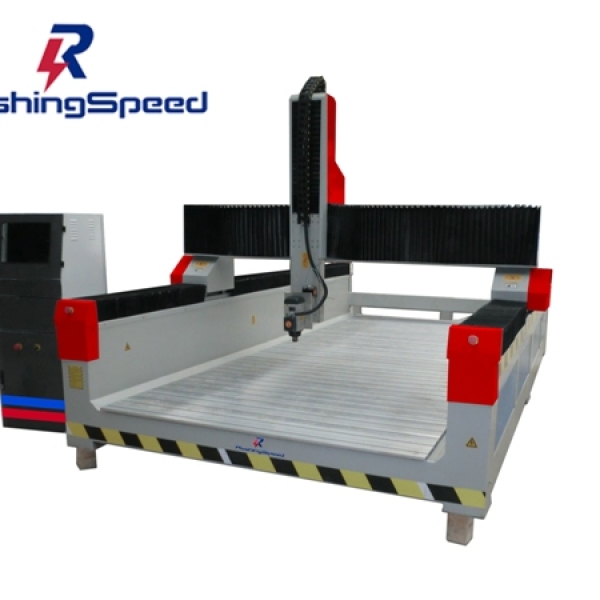

CNC WoodWorking Router Machine RSN-2500B/2

CNC WoodWorking Router Machine RSN-2500B/2

Double Working Z Heads/Spindles

Video:

Coming Soon!

Suitable for:

Cabinetry - Kitchen, furniture and more

Standard Woodworking - Furniture, shop fitting, plastic, aluminum, production and more

Decoration Industry, waved plate, signs making.

Overview and Features:

1. RSN series cnc machines are our economical class cnc machines, we supply the suitable series to meet more demands for customers on cost. Rigidity frame design will meet all kinds of working through our cnc machines. Suitable speed, suitable capability, suitable cost. All parts are Chinese brands and some are worldwide brands.

2. Frame is welded, but with enough beams to get enough support, not same strong as high class version, but still rigidity frame, no shaking during moving, all frames are same processed by large cnc, still keep high precision.

3. Spindle is big power, mainly we choose Chinese brand to control the cost, but customers can have the requirements for Italy big power spindle. Servo motors are necessary, mainly we use Chinese local brand to replace the great oversea brand. But all speeds and precisions are still high level to keep the machine quality.

4. Independently 2 Z carriages, each z carriage is with one spindle, the distance between two carriage is easy to adjust and meet more sizes materials to cut together, double production capability than standard one z carriage. Good helper to increase the working pieces.

5. The table is Aluminum T slot to clamp, also we supply vacuum hold down system when customers need, pump is Chinese vacuum pump, high power, higher suction.

6. Mach 3, DSP, Syntec systems are mainly choice for this series.

7. High Gantry to load high materials. Process will be opener.

Technical Specification:

Options:

More Power Spindle, 6kw, 8kw, 9kw.

Syntec System and completed sets of servo units.

Open ideas when you have and we all can consider and try to meet.
