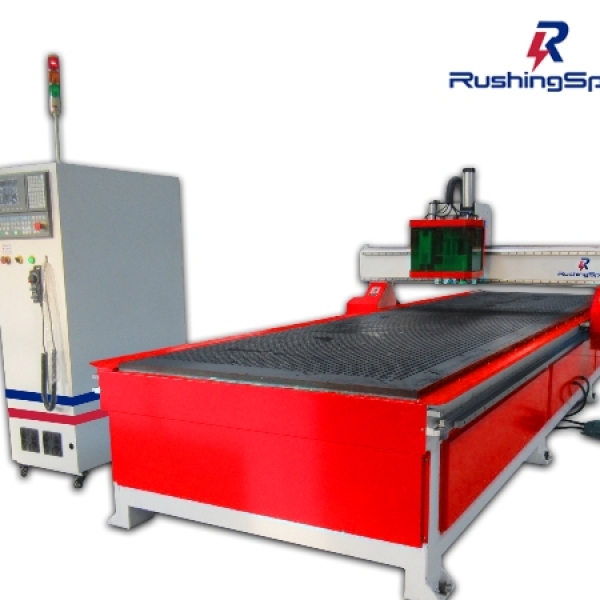

CNC WoodWorking Router Machine RSN-3000F

CNC WoodWorking Router Machine RSN-3000F

CNC WoodWorking Router Machine RSN-3000F

CNC WoodWorking Router Machine RSN-3000F

Manual Spindle to Change Tools

Video:

Coming Soon!



Suitable for:

Cabinetry - Kitchen, furniture and more

Standard Woodworking - Furniture, shop fitting, plastic, aluminum, production and more

Decoration Industry, waved plate, signs making. Foam making, Wood models making.

Overview and Features:



1. RSN series cnc machines are our economical class cnc machines, we supply the suitable series to meet more demands for customers on cost. Rigidity frame design will meet all kinds of working through our cnc machines. Suitable speed, suitable capability, suitable cost. All parts are Chinese brands and some are worldwide brands. Fully Assembled and Tested in Jinan city, China.

2. Frame is welded, but with enough beams to get enough support, not same strong as high class version, but still rigidity frame, no shaking during moving, all frames are same processed by large cnc, still keep high precision.

3. Spindle is Chinese manual spindle, air cooling type, 4.5kw is the standard power, mainly we choose Chinese brand to control the cost, but customers can have the requirements for Italy big power spindle. Servo motors are necessary, mainly we use Chinese local brand to replace the great oversea brand. But all speeds and precisions are still high level to keep the machine quality.

4. There are manual tools to change.

5. The table is Aluminum T slot to clamp, also we supply vacuum hold down system when customers need, pump is Chinese vacuum pump, high power, higher suction. Syntec systems are mainly choice for this machine, User-friendly Design Software Suite for easy part design and tool-pathing. · CAD/CAM Software are suitable for the system. Home Switches on All Axis - Home Zeroed Saves all Part(Fixture) Zeros.

6. Big Foam is ok to be processed. Easy to clamp the big size productions.

7. High Gantry to load high materials. Process will be opener.



Technical Specification:

Series

RSN 3000F

Travelling size

2170*3180*610mm

Working size

2000*3000*600mm

Table size

3300*2380mm

Motion Motor

Chinese AC servo motor for all axes

Transmission System

X/Y rack and pinion drive, Z ball screw drive

Table

Vacuum Table, Including 7.5kw Vacuum Pump.

Spindle power

6.0kw Chinese Air cooling spindle

Spindle speed

18000r/min

Boring Unit( Gang Drill )

None

Max Travelling speed

40m/min

Max Working speed

15m/min

Tool magazine Carousel

None

Tool holders

ER32

Driving system

Chinese AC servo driver

Voltage

AC380/3PH/50HZ

Controller

SYNTEC



Options:

More Power Spindle, 7kw, 8kw, 9kw.

Syntec System and completed sets of servo units.

Open ideas when you have and we all can consider and try to meet.
